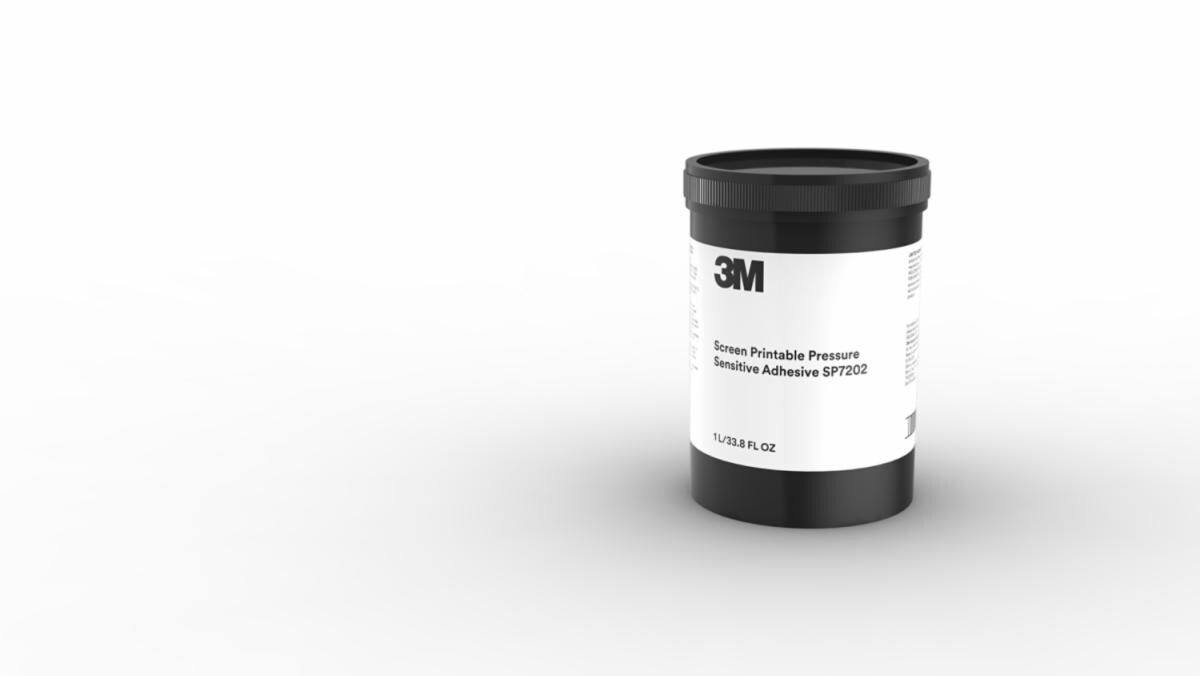

3M™ Screen Printable UV-Curing Pressure Sensitive Adhesive SP7202, Clear, 6 Bottles/Case

3M ID 70007545042
  • Screen-printable liquid cures under UV light to become a pressure sensitive adhesive (PSA)
  • Works with conventional screen printing and UV curing equipment
  • Allows printing of narrow bond lines (> 0.2mm) and holes as small as approximately 1mm
  • UV curable in 1-2 seconds
 More...
View all details
Product Details

3M™ Screen Printable Pressure Sensitive Adhesive SP7202 is a liquid that can be applied through a screen printing process, then cured with 1-2 seconds under UV light to become a pressure sensitive adhesive. It allows fine bond lines greater than 0.2mm and holes as small as approximately 1mm with less waste than die cutting. The 100% solids adhesive can be printed directly on parts. When cured it is water and chemical resistant, and can be bonded immediately or covered with a liner for shipping to a different location.

Screen printable adhesive produces precise lines, helps reduce waste 3M™ Screen Printable Pressure Sensitive Adhesive SP7202 allows screen printing of fine lines and dots in an additive process that uses a 100% solids adhesive. When printed parts are placed under a UV light the liquid cures in 1-2 seconds to become a pressure sensitive adhesive (PSA), which can then be bonded or covered with a liner for shipment to a different location. The process works with small parts and complex shapes, printing fine lines larger than 0.2mm and holes as small as approximately 1mm with great precision and with less waste than subtractive processes such as die cutting. This material works with conventional screen printing and UV curing equipment. The requirement for UV light to cure the liquid provides long open times that help prevent screen clogging as well as a wide range of storage temperatures. The cured adhesive is water and chemical resistant and provides excellent adhesion to polycarbonate, polyester and higher surface energy materials; it demonstrates high static shear on par with traditional PSAs. This adhesive has been tested to ASTM F1596 for durability and can withstand up to 1 million actuations.

  • Screen-printable liquid cures under UV light to become a pressure sensitive adhesive (PSA)
  • Works with conventional screen printing and UV curing equipment
  • Allows printing of narrow bond lines (> 0.2mm) and holes as small as approximately 1mm
  • UV curable in 1-2 seconds
  • 100% solids adhesive can print directly on parts and be covered with a liner for movement or shipping
  • Water and chemical resistant when cured
  • Excellent adhesion to polycarbonate, polyester and higher surface energy materials
  • Requirement for UV to cure provides long open times that help prevent screen clogging
  • Additive printing process means less waste compared to subtractive die cutting
  • Tested to ASTM F1596 for durability – up to 1 million actuations

Suggested Applications

  • Membrane switches
  • Electronics
  • Graphic overlays
  • Flexible printed circuits
Specifications
Attribute Name
Value
Brand
3M™
